Sofle Pico Pimoroni Support

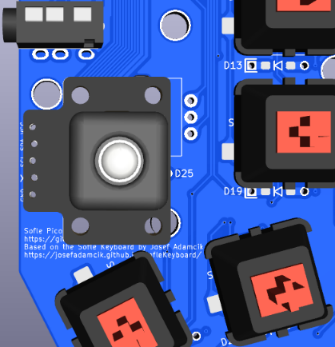

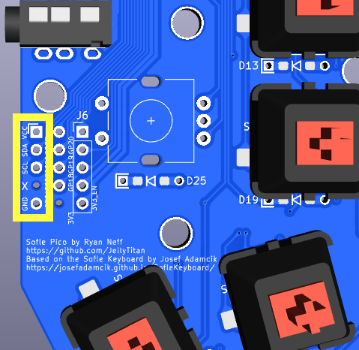

The Sofle Pico was designed for Pimoroni support on the right hand in lieu of a rotary encoder. The outermost column of pins on the patch bay on the right hand line up with the Pimoroni pin out. However - after trying it out, the experience is not great, so it’s not recommended. The cursor movement is ‘jenky’ at best.

pcb with diode inserted from the top pcb with bent diode legs

QMK does officially support the Pimoroni. There may be a way to improve the jenky movement in QMK.

If you find a way to make this work well, please submit a PR.

An additional mounting bracket will likely need to be designed to position the trackball comfortably, positioned above the pcb and angled toward the thumb.

Jenky movement example:
